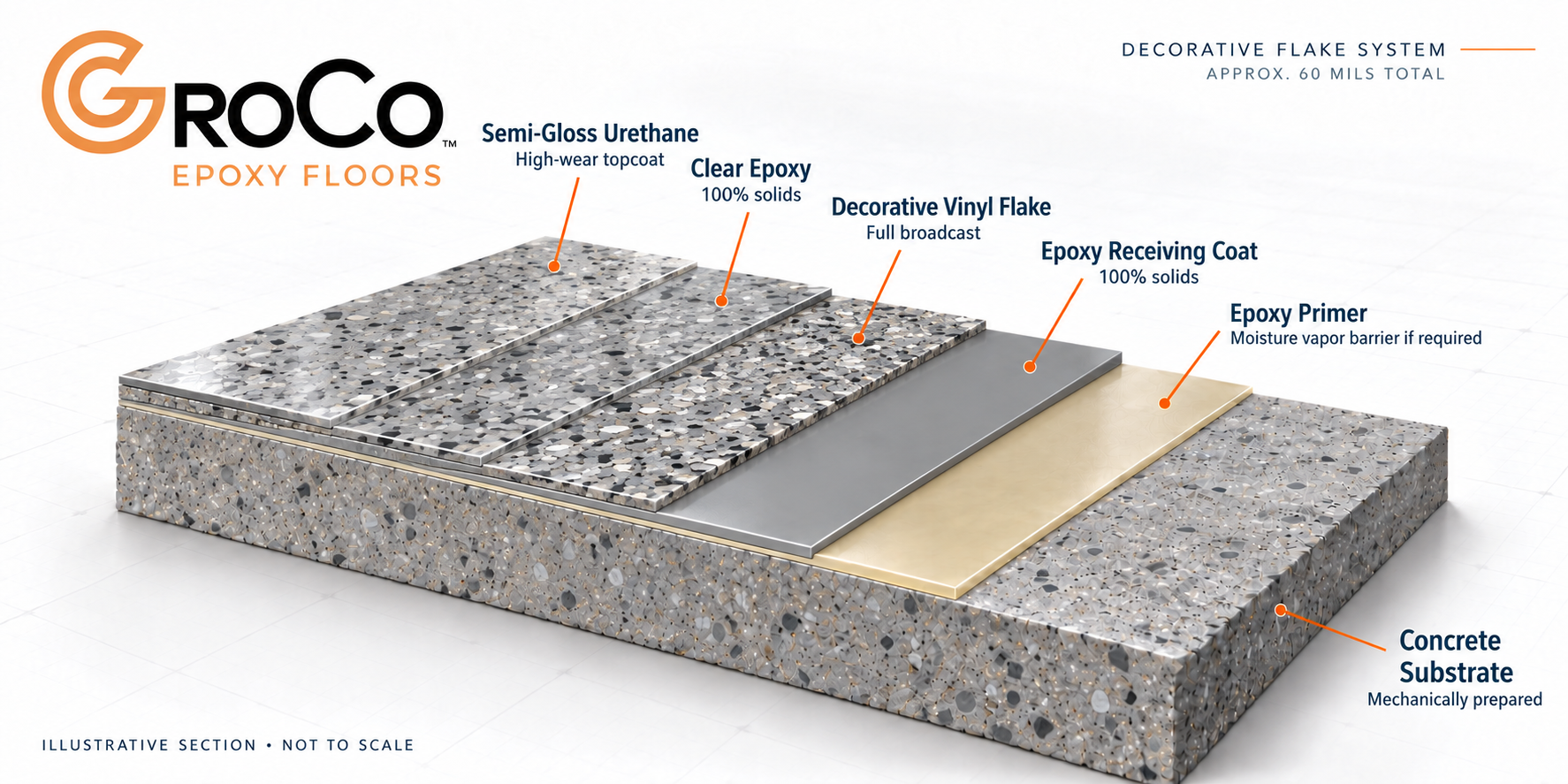

Decorative finish · Approx. 60 mils
Decorative flake system
A full-flake broadcast over epoxy, finished with clear epoxy and a semi-gloss urethane topcoat. Explore the illustrated assembly from prepared concrete through the final wearing surface.
SYSTEM GRAPHICS
See how the floor is built.
Explore GroCo flooring assemblies, layer by layer. Download the graphics for your project conversations and proposals.

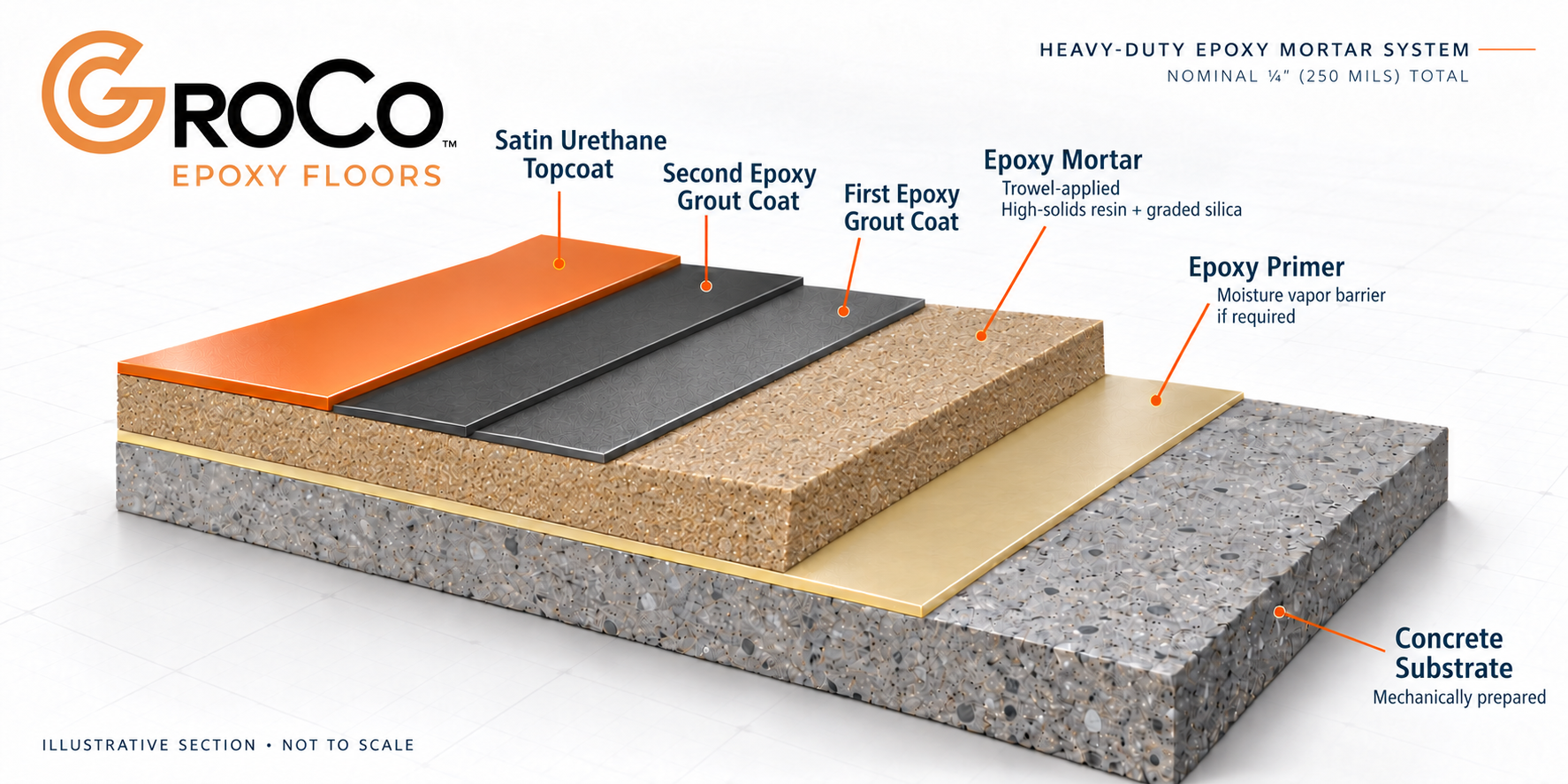

Industrial system · Nominal ¼ inch
Heavy-duty epoxy mortar system
A trowel-applied epoxy and silica mortar assembly with two epoxy grout coats and a satin urethane topcoat. The stepped section identifies each component of the nominal 250-mil system.
Illustrative sections, not to scale. Final materials, thickness, color and finish are established in the project specification.
